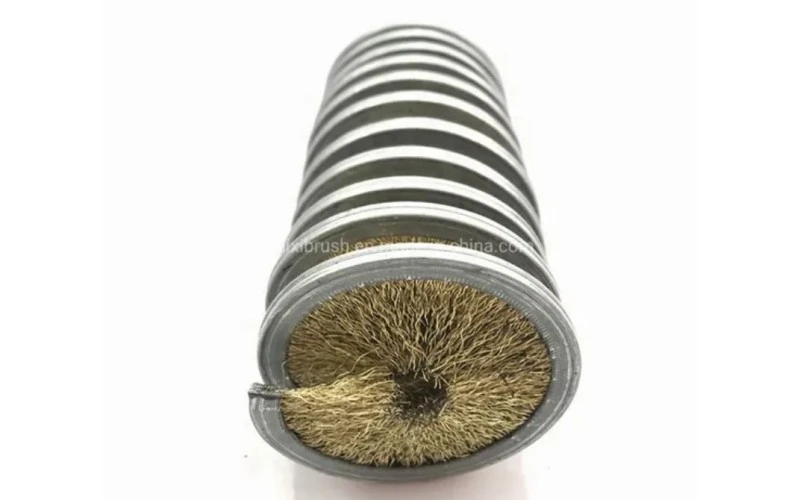

Brass Inside Spiral Brush for 360-degree Chain Cleaning

Customizable Size & Density

Manufacturer of metal coil brushes for pipe, tube, and surface finishing applications, serving metalworking, automotive, and appliance industries with 15+ years of export experience. This Inside Spiral Brush is engineered for 360-degree chain cleaning — brass filaments wrap fully around the chain profile to lift packed grease and grime from every side.

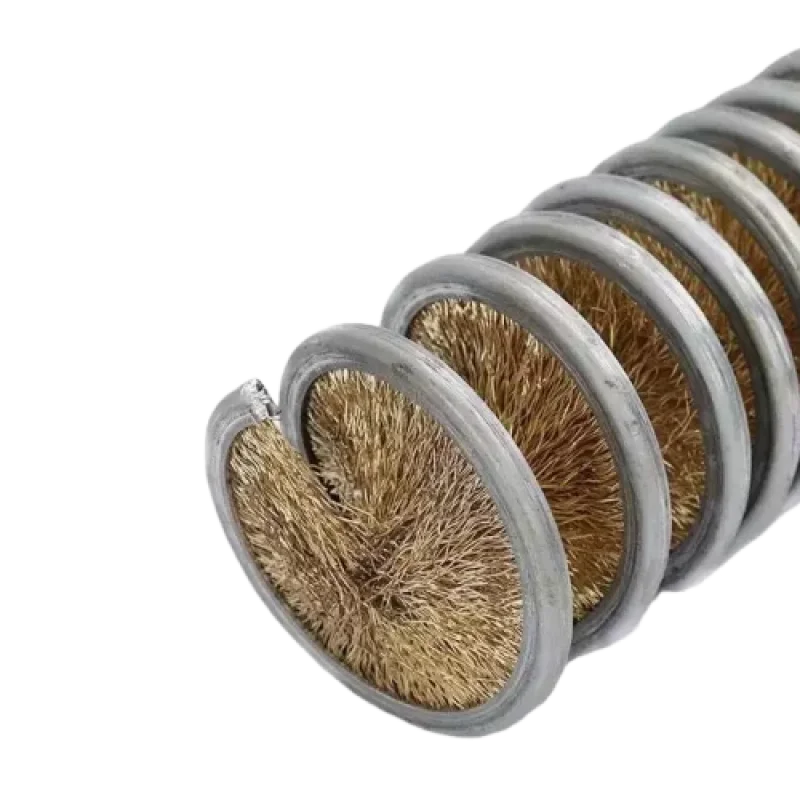

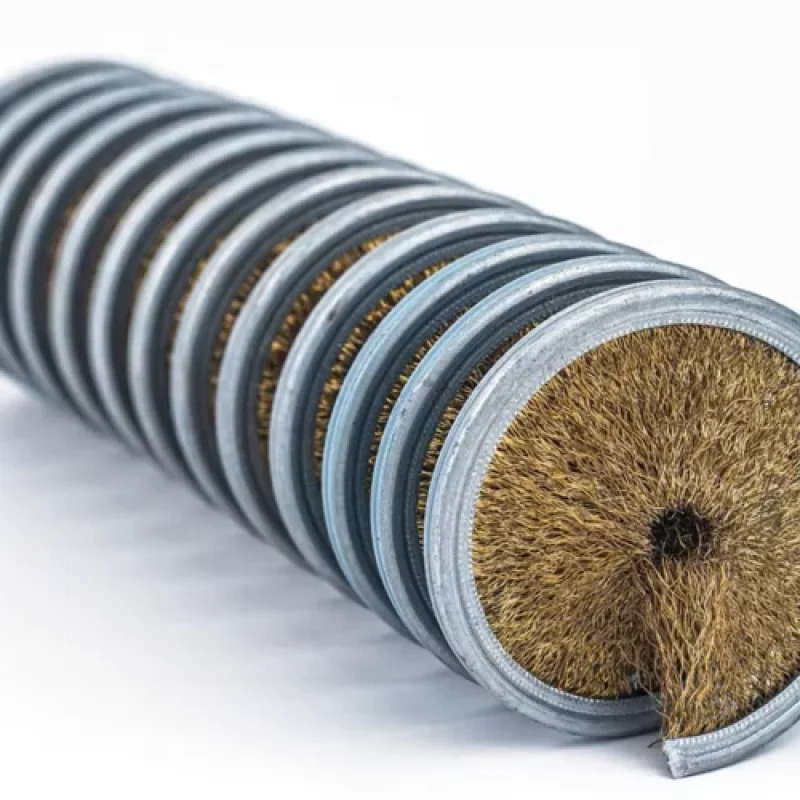

This brass spiral brush is an inside coil brush built for thorough chain cleaning. Its continuous spiral winding wraps completely around the chain, contacting links, rollers, and pins from all directions in a single pass.

Whatsapp：8618112932640

Email: audrey@fortexbrush.com

Home /
Brass Inside Spiral Brush for 360-degree Chain Cleaning

Key Features of Inside Spiral Brush

Full 360° Contact Cleaning

As a true coil cleaning brush, the filaments surround the chain from all sides, removing packed grease and dirt that single-sided brushes leave behind.

Non-Sparking Brass Filaments

Brass wire makes this Inside Spiral Brush safe for use in explosion-proof environments, cleaning effectively without sparking or damaging chain plating.

Flexible Fit Around Chain Profiles

The spiral construction of this brass spiral brush conforms closely to varying chain widths and link shapes, maintaining consistent contact along the full length.

Gentle on Coated & Plated Surfaces

Softer than steel, brass filaments clean thoroughly without scratching chrome-plated, painted, or coated chain surfaces, preserving the finish.

Material & Technical Specifications

Material	Hardness	Max Temp	Corrosion Resistance	Spark Risk	Best Use
Brass Wire	Soft	~250°C	Good	None	Non-ferrous metals, explosion-proof zones
Steel Wire (Carbon)	Hard	~300°C	Low	High	Heavy rust/scale removal
Stainless Steel Wire	Hard	~400°C	Excellent	Low	Food/pharma, marine, chemical lines
Abrasive Wire	Very Hard	~300°C	Low	High	Oxide removal, surface conditioning
Galvanized Steel Wire	Hard	~250°C	Moderate	High	General cleaning, budget option

Customizable Specifications

A=overall brush length

B=width of metal base

C=filament material and diameter

D=outer diameter

E=inner diameter

C=core inner diameter

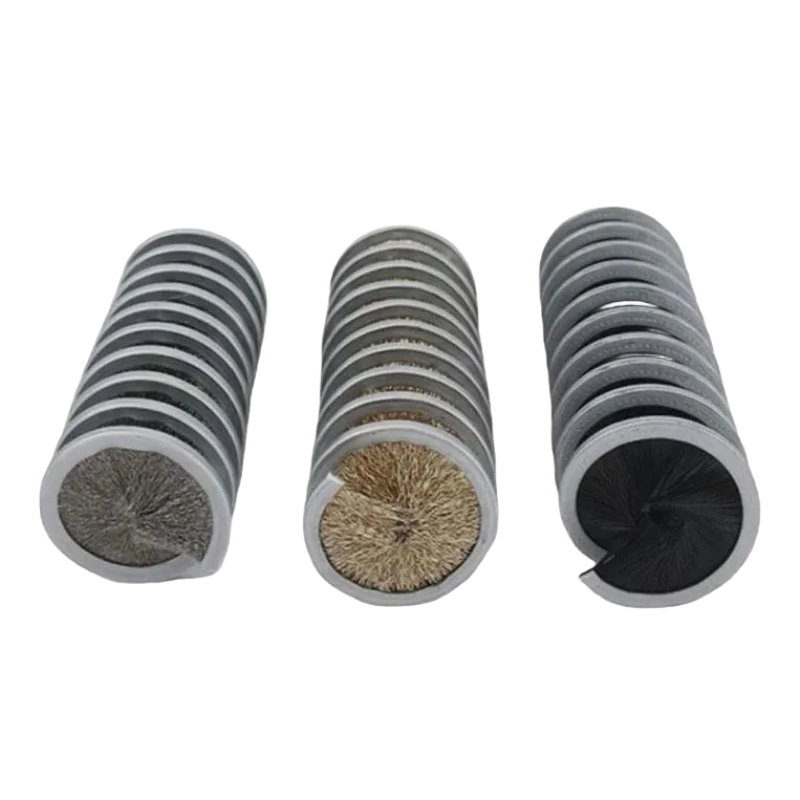

The Right Brush For Every Metal Surface

Brass for coated chains; steel/stainless for heavy grease and corrosion.

360° Chain Cleaning

This coil-style brush is adapted specifically for chain profiles, delivering contact from multiple sides to strip packed grease from motorcycle or industrial drive chains.

Learn More

Wire Rope & Cable Cleaning

The same spiral principle wraps around rope strands, removing grease and corrosion from areas between individual strands that flat brushes cannot reach.

Learn More

Non-Ferrous & Coated Components

Choose brass filaments when cleaning chrome-plated, painted, or non-ferrous chain and rope components where steel wire risks scratching the surface.

Learn More

Manufacturing & Quality Control

Production Lines

0 +

Countries Served

0 +

Skilled Employees

0 +

Workshop Area

0 ㎡

Year Founded

Why Partner With Us

When you partner with us, you gain more than a supplier — you gain a complete team behind your brush.

Trusted Sourcing Advisor

Constant support from material selection to final delivery, backed by professional technical guidance and strict quality oversight.

Professional Brush Designer

Comprehensive assistance from initial sketching to prototype validation, driven by customized engineering and advanced structural design.

Full-Scale Brush Manufacturer

Seamless execution from high-capacity manufacturing to secure shipment, guaranteed by rigorous testing and robust production management.

As Your Custom Brush Manufacturer

We'd Like to Work With You

At Fortex Brushes, trust is defined by execution — proven by the quality of our products and the integrity of our partnerships.

More than a manufacturer, we provide advanced, sustainable solutions designed to optimize your facility for superior safety, cleanliness, and operational productivity.”

Contact Us

FAQ

1. What chain sizes can this Inside Spiral Brush accommodate?
The inner diameter is matched to your specific chain width, so it can be sized for motorcycle, bicycle, or industrial drive chains.

2. Can this coil cleaning brush be used with the chain in motion?
It’s designed for use with the drive disengaged; passing the brush along a stationary or slowly rotated chain ensures thorough, controlled cleaning without damage.

3. Is brass wire strong enough for heavy grease buildup?
Brass handles moderate to heavy grease and grime effectively; for extremely hardened deposits, a steel wire version may offer more aggressive cleaning.

4. How long does this brass spiral brush typically last?
Brass resists corrosion and wear well under normal use; service life depends on cleaning frequency and the abrasiveness of the debris being removed.

5. Can this inside coil brush be adapted for wire rope cleaning as well?
Yes, the same coil principle used for chain cleaning also works effectively on stranded wire rope, reaching between strands to remove grease and corrosion.
