A U.S. industrial customer needed a Custom Nylon Coil Brush from specifications alone. Fortex Brush delivered drawing support, sample production, factory inspection, air shipment, and successfully tracked delivery to America.

Project Overview

A U.S. industrial customer was looking for a custom brush solution for their equipment but only had basic dimensional requirements available.

Instead of selecting a standard brush, the customer needed a specially designed Nylon Coil Brush that could fit accurately inside the equipment and maintain consistent cleaning performance.

Based on the provided specifications, Fortex Brush supported the complete development process, including technical evaluation, engineering drawing, sample manufacturing, quality inspection, and air shipment.

This project highlights how a customized coil brush can be developed from initial requirements into a ready-to-test industrial solution.

Project Item	Details
Customer Market	US Market
Customized Product	Custom Inward Nylon Coil Spring Brush
Main Requirement	Overall Length (A): 75 mm Strip Width (B): 5 mm Filament: Ø0.3 mm Nylon Outer Diameter (D): 65 mm Inner Diameter (E): 20 mm
Estimated Production Time	Within 20 days
Actual Production Time	7 days
Development Process	Requirement Review → Factory Drawing→ Cost Confirmation → Formal Quotation → Customer Approval → Sample Production → Inspection → Air Delivery
Final Result	Samples completed, inspected and delivered

The Customer’s Challenge

The central task was converting several separate measurements into a dependable Custom Nylon Coil Brush that would fit directly into the customer’s equipment. Fit and brushing performance depended on the coil diameter, brush length, strip width, filament direction, and material thickness. Even a minor mistake could lead to uneven contact, excessive resistance, or failure during installation. A price alone was not enough; before considering a larger order, the customer needed engineering confirmation, a clear design reference, and a physical sample.

Accurate Installation Fit: The 65 mm outer diameter, 20 mm inner diameter, and 75 mm length had to work together so the finished brush would match the available equipment space without distortion.
Stable Helical Construction: The 5 mm strip and 0.3 mm nylon filament needed to be formed into a consistent inward-facing coil with uniform spacing and dependable filament retention.
Low-Risk Sample Validation: Because no finished drawing or existing sample was available, the customer required one trial unit to check fit, contact, and handling before considering production quantities.

Our Custom Solution

1. Requirement Analysis

Our sales and engineering teams brought the customer’s dimensions, nylon specification, filament orientation, quantity, and destination together in a single production brief. They examined whether the requested diameters left enough room for forming and whether the 5 mm strip could maintain a stable helix. Mounting also mattered, as did the continuous contact required from the inward-facing filaments. Similar equipment may be called a nylon spiral brush, so the team confirmed the actual construction instead of relying on the product name. That review gave us a practical basis for costing and for preparing the Custom Nylon Coil Brush drawing.

2. Engineering Drawing

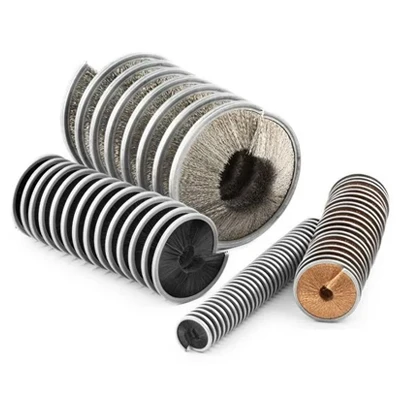

After feasibility was confirmed, our engineer converted the parameters into a dimensioned drawing. It specified the outer and inner diameters, overall length, strip width, filament size, winding direction, and inward-facing nylon arrangement. The profile was clear enough for production staff to use during forming. That clarity mattered: terms such as coil brush, helical brush, and inside coil brush can refer to related constructions whose working faces differ. The drawing provided both parties with a common reference, limited misinterpretation, and established the expected Custom Nylon Coil Brush before material preparation began.

3. Customer Review & Feedback

Before production began, we sent the drawing to the customer and marked the dimensions most relevant to installation. The customer checked the 65 mm outer diameter, 20 mm inner opening, 75 mm length, and inward filament direction against the equipment. Any comments went straight to engineering, keeping the technical details consistent between departments. We released the job to the workshop only once the drawing and commercial terms had been approved. That checkpoint kept the Custom Nylon Coil Brush faithful to the original request, avoided unnecessary material waste, and provided the buyer with a documented reference for inspecting the delivered sample.

4. Sample Production

To produce the sample, technicians first prepared the nylon-filled metal strip, then shaped it to the required diameter, set the winding pitch, and finished the ends to make handling safer. Across the 75 mm length, the inward-facing filaments needed to stay evenly distributed, while the backing had to retain its circular shape without gaps or twisting. This was not a standard nylon cylinder brush with a conventional cylindrical surface; the application called for a compact helix whose working face was on the inside. Material preparation, forming, adjustment, and finishing were coordinated to complete the Custom Nylon Coil Brush sample within the agreed 20-day schedule.

5. Factory Inspection

Before packing, the quality team inspected the Custom Nylon Coil Brush against the approved drawing. They checked the main diameters and overall length, then examined roundness, winding consistency, filament direction, and the metal strip. Special attention was given to filament distribution and retention because loose sections or uneven density could create inconsistent contact. Inspectors also reviewed the coil ends for sharp edges, deformation, or damage that might affect installation. Photographs and measurements were recorded for traceability. These checks reduced the risk of receiving a sample that looked acceptable but could not be evaluated properly in the customer’s equipment.

Delivery & Results

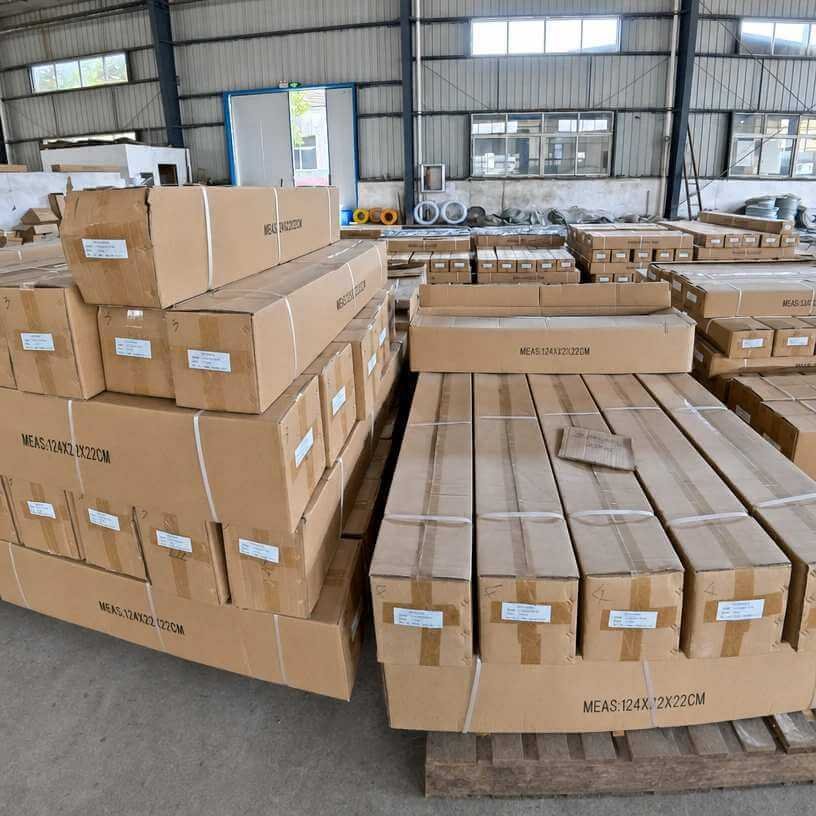

Protected Sample Packaging

A formed coil brush can be affected by compression, impact, or rough handling in international transit, so packaging was treated as part of sample quality. The finished custom nylon spiral brush was cleaned, protected from abrasion, and positioned to prevent its circular profile from being crushed inside the carton. Cushioning limited movement around the ends and metal backing, while a rigid outer package added protection without unnecessary weight. This method preserved the dimensions established during forming and inspection. It also allowed the customer to assess the sample in the same condition in which it left our factory instead of correcting avoidable transit damage.

Prompt Sample Dispatch

Once inspection and packaging were complete, our team prepared the export documents and arranged air shipment to the United States. Air delivery was selected because rapid evaluation of an engineering sample was more valuable than the lower cost of slower transport. The estimated transit period was 7–12 days, subject to flight availability and customs processing. We checked the address before release and shared tracking information after dispatch. By coordinating the production finish date, paperwork, packing, and carrier handover, we moved the Custom Nylon Coil Brush from the workshop into international transit without unnecessary waiting.

Active Logistics Follow-Up

Our service did not stop when the parcel left the factory. We monitored tracking updates, checked progress through key transit points, and kept the customer informed of meaningful status changes. If a carrier exception, address query, or customs request had appeared, our sales representative would have coordinated the response with the buyer and logistics provider. This follow-up is valuable for samples because technicians or equipment time may already be reserved for testing. Maintaining visibility helped the customer plan for receipt of the Custom Nylon Coil Brush and allowed any delivery issue to be addressed before the expected arrival date passed.

Current Project Result

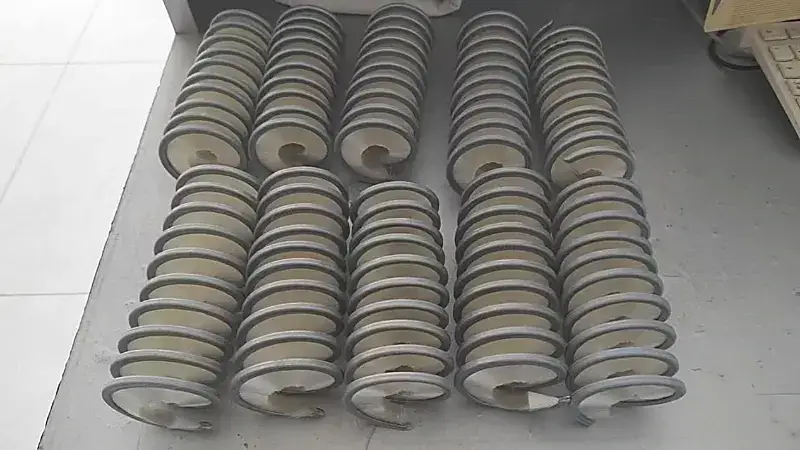

The samples were delivered to the U.S. customer for installation and performance evaluation. The delivered samples provide a practical basis for future dimensional adjustments, performance feedback or bulk-order discussions.

Our Service & Manufacturing Capabilities

This project shows how Fortex Brush can convert an inquiry without an existing drawing into a controlled and traceable custom sample project.

Requirement-to-Drawing Support: Translate customer specifications into a clear, manufacturable product drawing.

Custom Sample Manufacturing: Produce non-standard coil structures, filament configurations and dimensions for equipment-specific requirements.
Factory Quality Control: Inspect dimensions, winding consistency, filament condition and structural finishing before shipment.
End-to-End Project Service: Coordinate requirement clarification, drawing approval, quotation, production, inspection, shipping and logistics follow-up through one contact.

FAQ

Can Fortex produce custom coil brushes based on customer dimensions?

Yes. Fortex develops custom coil brushes based on drawings, measurements, materials, and specific equipment requirements.

What applications are suitable for Nylon Coil Brush products?

They are commonly used for internal cleaning, material handling equipment, production lines, and industrial surface maintenance.

Can customers test samples before placing bulk orders?

Yes. Sample production allows customers to confirm installation fit and cleaning performance before moving to larger production orders.
