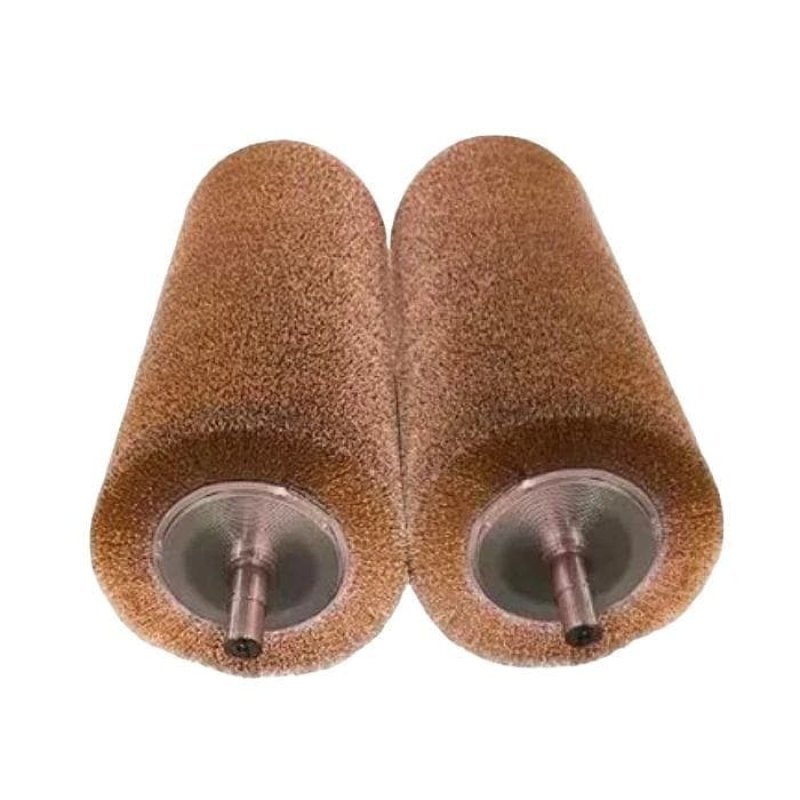

Key Features of Steel Roller Brush
Hardened Steel Wire Filaments
Crimped high-carbon or stainless steel wire aggressively removes rust, scale, and paint while resisting bending and premature wear under load.
Balanced Cylindrical Core
Precision-machined core ensures vibration-free rotation at high RPM, protecting your motor bearings and delivering uniform surface finishing.
High Heat & Fatigue Resistance
Steel bristles withstand friction heat and repeated flexing, maintaining cutting aggression across long production runs without fraying.
Consistent Filament Density
Densely packed, evenly distributed bristles provide full-width coverage, eliminating streaks and reducing rework on flat or contoured surfaces.
Material & Technical Specifications
| Property | High-Carbon Steel | Stainless Steel 304 | Stainless Steel 316 | Brass-Coated Steel |
|---|---|---|---|---|
| Cutting Aggression | Very High | High | High | Moderate |
| Corrosion Resistance | Low | High | Very High | Moderate |
| Heat Resistance | Up to 350°C | Up to 400°C | Up to 400°C | Up to 200°C |
| Spark Risk | High | Moderate | Moderate | Low (non-sparking) |
| Fatigue/Wear Resistance | High | Very High | Very High | Moderate |
| Recommended Use | Heavy rust & scale stripping | Wet or hygienic environments | Marine & chemical exposure | Delicate or sensitive surfaces |
Customizable Specifications
A=Overall Brush Length
C=Outer Diameter
D=Inner Diameter
G=Brush Face Length
E=Filament Material and Diameter
Wire Material & Type
Choose knotted or straight-fill high-carbon steel for heavy rust and weld-scale removal, or stainless steel for corrosion-resistant, non-contaminating applications.
Filament Diameter
Wire gauge from 0.15–0.50 mm — thinner filaments for controlled surface prep, thicker filaments for stripping stubborn corrosion and coatings.
Core & Shaft
Solid steel, tube, or custom bore cores with keyway, flange, or shaft options that drop straight into your existing housing — no machine modification required.
Roller Dimensions
Custom brush diameter, face width, and overall length built to match your production line, coverage area, and RPM requirements.
The Right Brush For Every Metal Surface
One nylon roller brush, engineered for potato, carrot, and solar panel cleaning lines.
