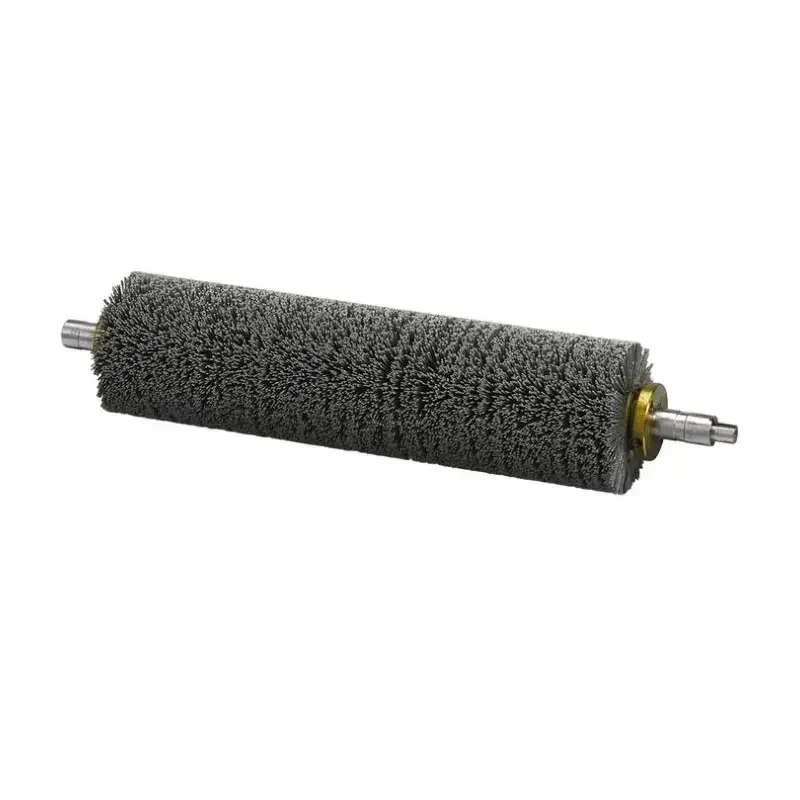

Key Features of Cylindrical Brush Roller Of Abrasive Nylon Filament
Embedded Abrasive Filaments
Abrasive mineral is distributed through each nylon filament, continually presenting cutting points as the bristles wear. The Cylindrical Brush Roller delivers repeatable sanding, denibbing, and light texturing without loose metal-wire fragments.
Flexible Surface Conformity
Resilient filaments flex over flat faces, gentle contours, grooves, and edges instead of cutting only the highest points. This controlled contact helps retain wood-grain character and profile definition while reducing uneven sanding marks.
Stable Shaft-Mounted Rotation
A concentric brush body and machined shaft support smooth rotation and predictable contact across the working width. The integrated assembly simplifies installation in compatible brush sanders and helps reduce vibration-related striping at approved speeds.
Repeatable Finish Preparation
Matched to the correct grit and process pressure, the roller removes raised fibers, light machining marks, and coating nibs from wood and furniture parts. It creates a more uniform surface for staining, sealing, painting, or recoating.
Material & Technical Specifications
| Property | High-Carbon Steel | Stainless Steel 304 | Stainless Steel 316 | Brass-Coated Steel |
|---|---|---|---|---|
| Cutting Aggression | Very High | High | High | Moderate |
| Corrosion Resistance | Low | High | Very High | Moderate |
| Heat Resistance | Up to 350°C | Up to 400°C | Up to 400°C | Up to 200°C |
| Spark Risk | High | Moderate | Moderate | Low (non-sparking) |
| Fatigue/Wear Resistance | High | Very High | Very High | Moderate |
| Recommended Use | Heavy rust & scale stripping | Wet or hygienic environments | Marine & chemical exposure | Delicate or sensitive surfaces |
Customizable Specifications
A=overall brush length
B=core diameter
C=core inner diameter
D=brush face length
C=core inner diameter
C=core inner diameter
Customized Bristle Profile & Pattern
Choose straight, spiral, helical, or sectioned fill layouts to match panel widths, grain direction, edge access, and the required surface-contact pattern.
Filament Material & Diameter
Select abrasive nylon grade, silicon carbide or aluminum oxide, grit size, filament diameter, and trim length for the required cutting action and flexibility.
Bristle Density & Trim Pattern
Adjust fill density, trim height, and uniform or zoned brushing areas to balance aggressiveness, heat control, surface coverage, and finish consistency.
Mounting & Shaft Configuration
Customize overall width, core diameter, shaft diameter, journals, keyways, threads, flats, bearings, and rotation direction to match OEM drawings or samples.
The Right Cylindrical Brush Roller for Your Machine
One shaft-mounted roller for wood panel sanding, dual-head structuring, and linear furniture-finishing machines.
