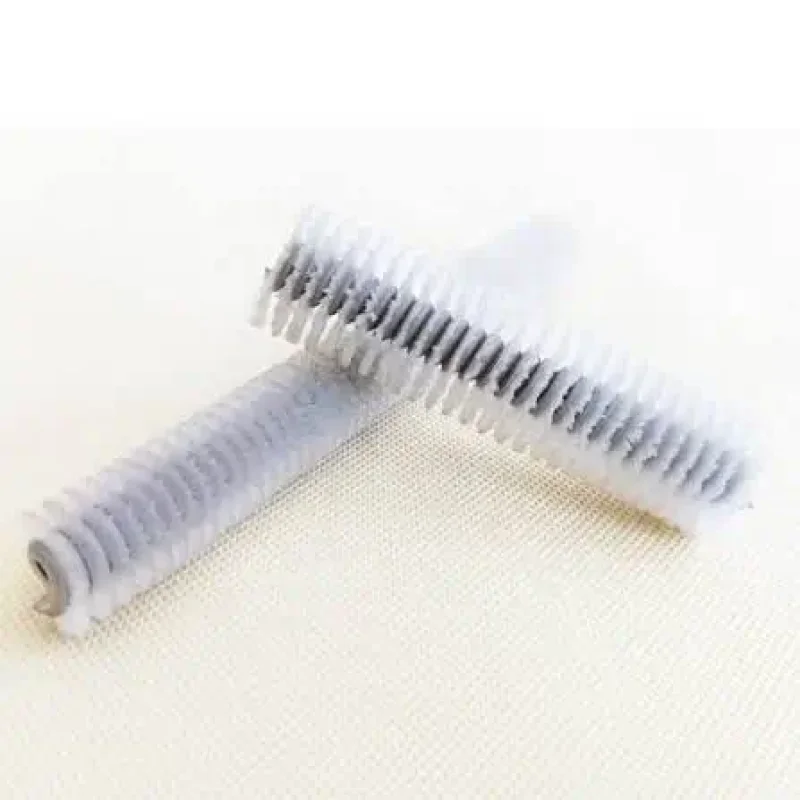

Key Features of Capsule Polishing Machine Brush
High-Density Filament Configuration
Dense nylon bristle arrangement ensures uniform contact pressure across all capsule surfaces. This outward wound coil brush design delivers consistent polishing results while extending brush service life.
Pharmaceutical-Grade Material Safety
FDA-compliant nylon filaments resist moisture absorption and bacterial growth. The nylon spiral brush construction prevents cross-contamination, meeting strict pharmaceutical hygiene requirements.
Superior Static Dissipation
Antistatic properties prevent dust attraction to polished capsules. This feature ensures clean finished products, reducing rejection rates and maintaining quality standards.
Precision Spiral Wound Design
The brush spring construction provides stable bristle density and consistent pressure distribution. This design maximizes cleaning efficiency while minimizing capsule damage during high-speed operation.
Material & Technical Specifications
| Parameter | Options / Range |
|---|---|
| Filament Diameter | 0.15–0.50 mm |
| Filament Material | Nylon PA6 / Nylon PA612 |
| Brush Length | 300–1000 mm (Customizable according to Capsule Polishing Machine size) |
| Brush Outer Diameter | 50–120 mm (Customizable based on equipment requirements) |
| Density | Low / Medium / High |

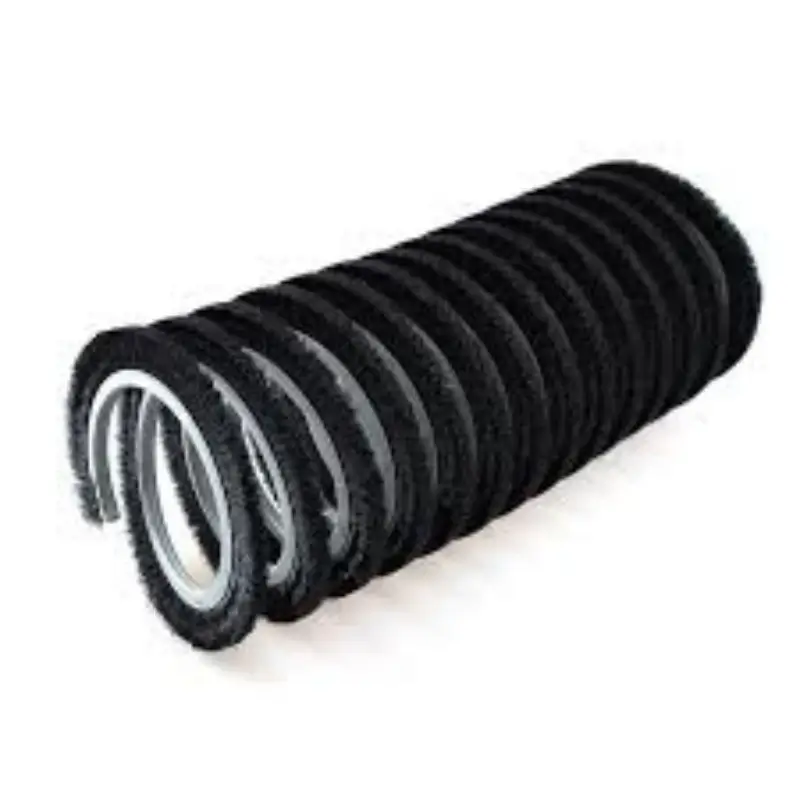

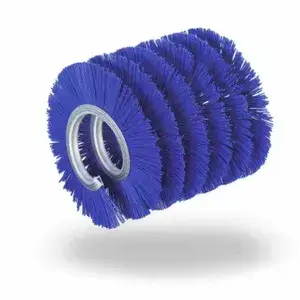

| Brush Structure | Spiral Wound Brush/ Outside Coil Brush |
| Spiral Pitch | Customized according to capsule conveying and polishing requirements |
Customizable Specifications
A=overall brush length
B=outer diameter
C=inner diameter
E=width of metal base
F=filament material and diameter
Custom Dimensions
Outer diameter, length, core size, and filament thickness tailored to your machine for drop-in replacement.
Custom Filament Properties
PA6, PA66, or PA612 grades; adjustable stiffness, color, and density. FDA-compliant and antistatic.
Custom Core & Winding
Stainless steel or galvanized cores; internal/external winding; adjustable spiral pitch for optimal contact pressure.
Custom Application Design
Pre-polishing or final finishing; optimized for hard gelatin, softgel, or vegetarian capsules; supports high-speed operation up to 4000 RPM.
The Right Brush For Your Application
FDA nylon, antistatic, moisture-proof. Custom grades, density, stiffness.
