Key Features of Solar Panel Brush
Gentle Surface Contact
Dense, resilient nylon filaments sweep dust, pollen, and loose deposits from panel glass with controlled pressure, helping reduce scratching risk on coated surfaces during repeated automated cleaning.
Uniform Rotational Cleaning
The Nylon Cylinder Brush maintains even rotational contact across the working width, supporting stable cleaning results and reducing missed bands on continuous or robotic cleaning systems.
Durable Nylon Filaments
Resilient nylon filaments recover their shape through repeated wet operation, while strong wear resistance preserves predictable surface contact and helps extend replacement intervals in outdoor and industrial cleaning environments.
Industrial Nylon Construction
Industrial-grade nylon filaments provide reliable wear resistance, shape recovery, and consistent brushing force, supporting long service life in solar panel robots, conveyor cleaners, and other automated equipment.
Material & Technical Specifications
| Property | Nylon66 | Nylon612 | PP |
|---|---|---|---|
| Wear Resistance | High | Very High | Moderate |
| Water Absorption | 8.5% | 1.5% | 0.03% |
| Heat Resistance | Up to 105°C | Up to 120°C | Up to 80°C |
| Flexibility | Good | Excellent | Fair |
| Recommended Use | Dry peeling | Wet & dry peeling | Light washing only |
Customizable Specifications
A=overall brush length
B=core diameter
C=core inner diameter
D=brush face length
C=core inner diameter
C=core inner diameter
Brush Size Options
The Solar Panel Brush can be customized in working length, outer diameter, core diameter, and overall length to match cleaning width, mounting space, and required rotational speed.
Filament Size Options
Industrial nylon filament diameter and trim length can be adjusted for gentle panel-glass contact, routine dust removal, or stronger cleaning of adhered dirt and outdoor deposits.
Bristle Pattern Options
Straight, spiral, staggered, and sectional layouts are available, with bristle density configured around surface sensitivity, water flow, cleaning pressure, throughput, and debris-removal requirements.
Core & Shaft Options
Core material, shaft ends, keyways, bearings, flanges, and drive interfaces can be manufactured from approved drawings or samples for direct integration with existing equipment.
The Right Brush for Your Machine

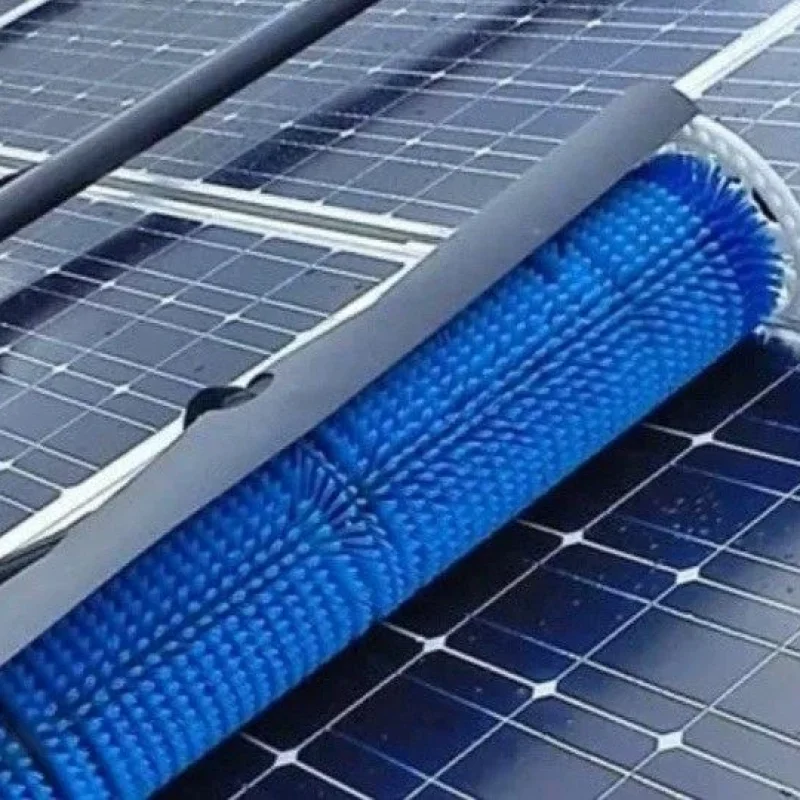

One Nylon Cylinder Brush，engineered for PV Panel and solar panel cleaning lines.
