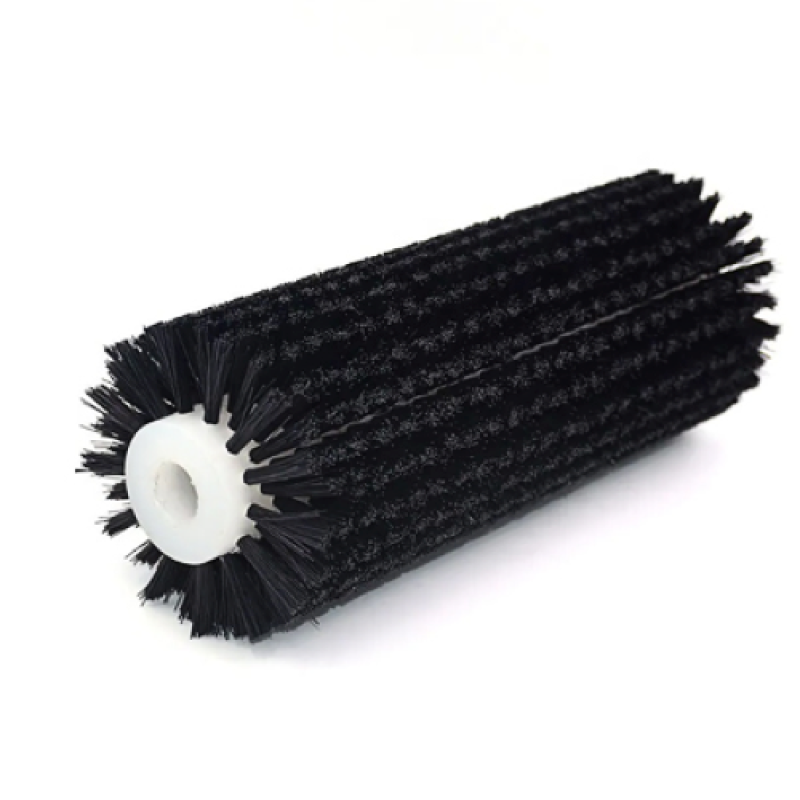

Key Features of Nylon Cylinder Brush
Fine Nylon Bristles
Fine PA612 or PA66 filaments flex around curved shells, lifting manure, feathers, and adhered debris with controlled contact that helps reduce cracking, scuffing, and unnecessary egg loss during continuous washing operations.
Uniform Shell Coverage
Dense, evenly trimmed tufts maintain consistent contact as eggs rotate beneath the roller, improving cleaning around both ends and irregular contours without requiring excessive brush pressure or repeated washing.
Stable Wet Performance
PA612 or PA66 filaments maintain bend recovery through repeated wet cycles and resist fatigue-related breakage, helping keep loose bristles away from the product stream and extending planned maintenance intervals.
Washdown-Ready Construction
Smooth polymer cores and stainless-steel shaft options support routine washdown, while machine-matched end fittings allow each Nylon Cylinder Brush to replace a worn roller with minimal changes to the existing washer.
Material & Technical Specifications
| Property | Nylon66 | Nylon612 | PP |
|---|---|---|---|
| Wear Resistance | High | Very High | Moderate |
| Water Absorption | 8.5% | 1.5% | 0.03% |
| Heat Resistance | Up to 105°C | Up to 120°C | Up to 80°C |
| Flexibility | Good | Excellent | Fair |
| Recommended Use | Dry peeling | Wet & dry peeling | Light washing only |
Customizable Specifications
A=overall brush length
B=core diameter
C=core inner diameter
D=brush face length
C=core inner diameter
C=core inner diameter
Brush Size Options
Each Nylon Cylinder Brush can be customized in overall length, working length, outer diameter, core diameter, and quantity to match your egg washer’s brush chamber, conveyor width, clearance, and throughput.
Filament Size Options
PA612 or PA66 filament diameter, trim length, and stiffness can be selected for chicken, duck, or goose eggs, contamination levels, shell strength, and line speed.
Bristle Pattern Options
Straight, spiral, staggered, or zoned tuft patterns can be configured with different densities to balance shell coverage, debris release, spray penetration, cleaning intensity, and water drainage.
Core & Shaft Options
Core material, shaft diameter, keyways, flats, threads, bearings, flanges, and drive-end geometry are reproduced from drawings or samples for direct installation in existing equipment.

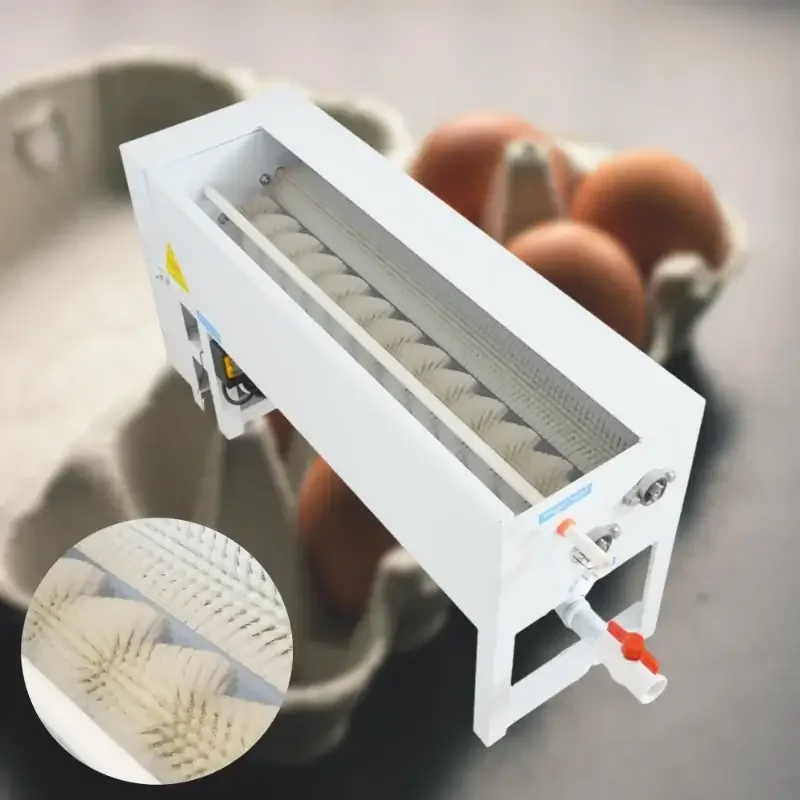

The Right Brush for Your Machine

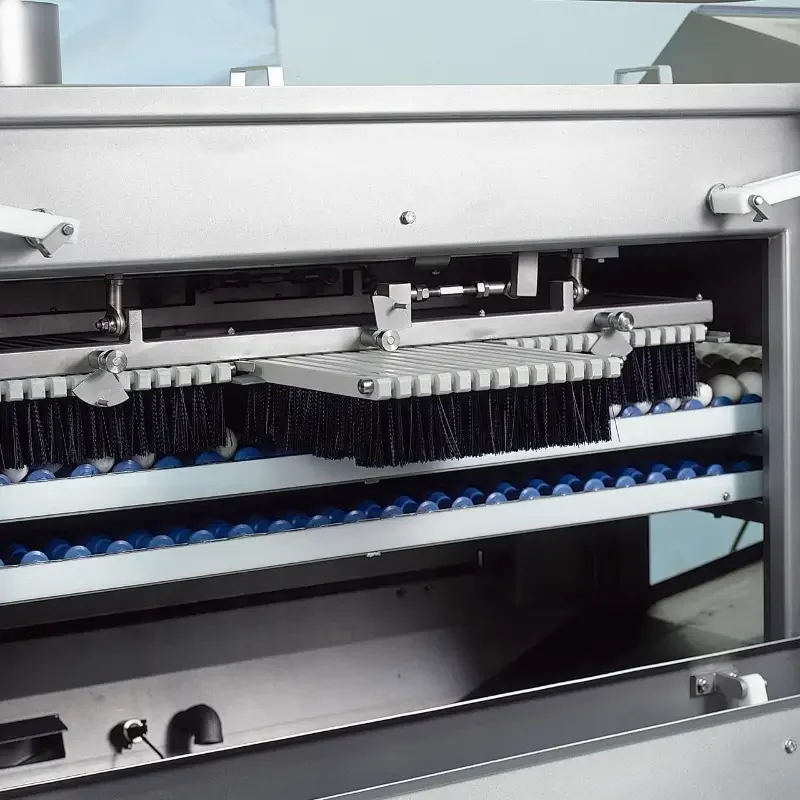

One nylon cylinder brush, engineered for egg grading and egg washing lines.
