Key Features of Golf Ball Washer Brush
Resilient Nylon Filaments
Premium nylon 6/66 bristles withstand continuous water immersion and detergent exposure in wash tanks, keeping their stiffness and shape through thousands of high-speed cycles in daily range service.
Coating-Safe Scrubbing Power
Tuned bristle stiffness lifts dried mud, sand, and grass from ball covers without scratching or dulling urethane and Surlyn finishes, so washed balls stay presentable and ready for resale or play.

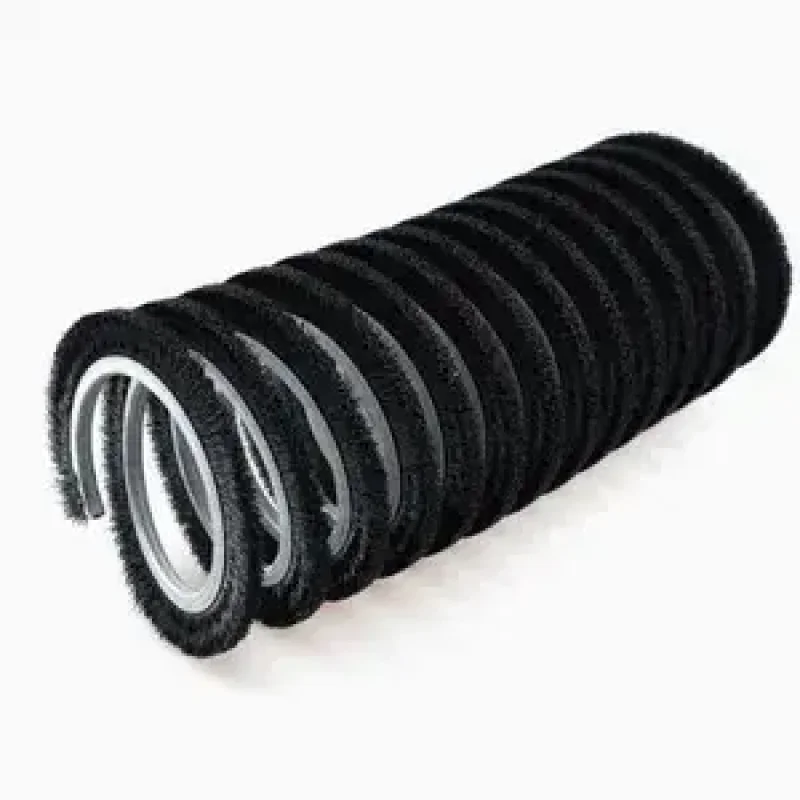

Spiral Coil Construction
The spiral-wound bristle pattern maintains full, even contact across the entire ball path at high rotation speeds, preventing missed spots and streaking while channeling water and debris away from the surface.
Balanced Shaft-Mounted Design
Each custom roller brush is trued and pre-mounted on a straight shaft, so it spins smoothly with minimal vibration, protecting your machine's bearings and dropping straight into existing washer housings.
Benefits of Custom Roller Brush for Golf Ball Cleaning
Improve Washing Efficiency
A properly customized roller brush helps golf ball washers maintain effective cleaning cycles, reducing processing time for large-volume ball washing operations.
Reduce Maintenance Expenses
A suitable brush solution minimizes unnecessary replacements and helps operators control maintenance expenses during long-term equipment use.
Support Equipment Upgrades
Custom roller brushes provide a practical replacement option for existing washers, allowing improved performance without major machine modifications.
Maintain Consistent Supply
For equipment manufacturers and distributors, customized brush production ensures stable specifications for repeat orders and future projects.
Material & Technical Specifications
| Filament Type | Wear Resistance | Cleaning Performance | Recommended Applications |
|---|---|---|---|
| Nylon 6 (PA6) | Good | Gentle cleaning | General cleaning, washing |
| Nylon 6.6 (PA66) | Excellent | Strong cleaning | Heavy-duty industrial cleaning |
| Nylon 6.12 (PA612) | Excellent | Controlled cleaning | Precision cleaning, humid environments |
| Abrasive Nylon | Excellent | Aggressive cleaning | Deburring, polishing, surface treatment |
Customizable Specifications
A=Overall Brush Length
C=Outer Diameter
D=Inner Diameter
E=Filament Material and Diameter
G=Brush Face Length
Filament Material & Diameter
Choose nylon 6, 66, or 6-12 in a range of filament diameters — softer filaments for premium ball finishes and gentler washing, stiffer ones for heavy-soil, high-throughput range machines.
Brush Diameter & Face Width
Roller dimensions are matched to your washer housing and ball path, from compact counter-top units to large-format range washing systems, ensuring full coverage without housing contact or ball bypass.
Shaft Configuration
Specify shaft material, length, diameter, and end details — keyed, threaded, or drilled ends — to match your drive system, enabling true drop-in installation with no modifications to existing washer equipment.
Bristle Pattern & Density
Spiral, straight, or chevron trims are tuned to your water flow and cleaning force, balancing scrubbing aggression against bristle wear life to extend replacement intervals and reduce maintenance costs.
