In the massive world of industrial cleaning, deburring, and material handling, the humble cylinder brush is often the unsung hero. It sits inside massive car washes, underneath conveyor belts, and deep within food processing lines. But not every brush is built the same way. If one looks closely at the base of the bristles, a clear distinction emerges between two primary manufacturing philosophies: the wound method and the tufted method.

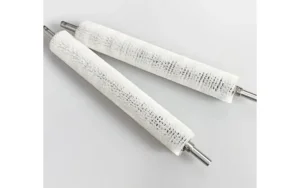

The wound cylinder brush is a specific engineering marvel. Unlike brushes that have bristles poked into holes, this version is essentially a “strip brush” that has been transformed into a spiral. It starts its life as a long, straight metal channel—a strip—into which bristles are folded and locked with a center wire. This strip is then tightly (or loosely, depending on the need) wrapped around a central cylindrical core.
It is a fascinating process to observe. The tension required to wrap a metal-backed strip around a steel shaft ensures that the brush remains a single, cohesive unit even under extreme rotational speeds.
The Core Difference: Wound vs. Tufted
When people talk about a cylinder brush, they are usually referring to one of these two types. To understand the “wound” variety, one must first understand what it is not.

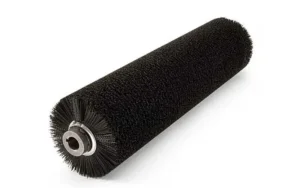

A tufted cylinder brush (often called a punched or stapled brush) is made by taking a solid plastic or wooden core, drilling a series of holes into it, and then “tufting” bundles of bristles into those holes using a metal staple. It’s the same logic used to make a toothbrush, just on a much larger, industrial scale. (Admittedly, tufted brushes have their place, especially when specific patterns or lower densities are required).
However, the wound cylinder brush offers something the tufted version cannot: absolute density. Because the strip is continuous, you can wrap it so tightly that there is virtually no space between the rows of bristles. This creates a solid “wall” of filament that is ideal for heavy scrubbing or high-pressure cleaning where “gaps” in the brush pattern would leave streaks on the product.
How a Wound Cylinder Brush is Actually Made
The construction is a two-stage process that requires significant mechanical precision.
Stage 1: The Strip Formation
First, the bristles—whether they are nylon, polypropylene, or even wire—are laid out horizontally. A metal channel (usually galvanized steel or stainless steel) is formed into a “U” shape. The bristles are placed into the “U,” and a heavy-duty “filler wire” is pressed down on top of them. The sides of the “U” are then crimped shut. This creates a permanent, mechanical lock. You can’t pull these bristles out without a pair of pliers and a lot of frustration.
Stage 2: The Winding
This long strip is then fed into a winding machine. The machine rotates a steel mandrel (the core) while pulling the strip onto it. It’s much like how a spring is made, or how tape is wrapped around a handle.
Close Wound: The rows of the strip touch each other. This is for maximum scrubbing power.

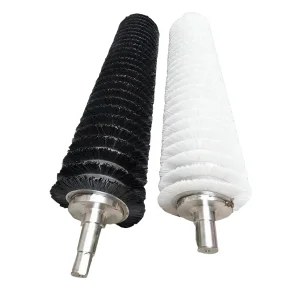

Open Wound (Pitch): There is a gap between the spirals. This is often seen in applications where the brush needs to move debris out of the way, acting almost like a screw conveyor.
Technical Comparison: At a Glance
The following table breaks down the typical observations made when comparing these two dominant styles in the factory environment.
| Feature | Wound Cylinder Brush | Tufted Cylinder Brush |
|---|---|---|
| Bristle Density | Very High (Continuous) | Moderate (Segmented by holes) |
| Core Material | Usually Steel or Stainless Steel | Usually HDPE, Polypro, or Wood |
| Durability | High (Metal-locked bristles) | Moderate (Staple-dependent) |
| Replaceability | Strip can often be replaced on core | Entire brush is usually discarded |
| Debris Clearance | Excellent (with open pitch) | Moderate (depends on hole pattern) |
| Common Use | Heavy scrubbing, conveyor cleaning | Light washing, fruit sorting |
Observations on Density and “The Flicking Action”
One of the most subjective yet vital aspects of a cylinder brush is how the bristles “flick.” In a wound cylinder brush, because the bristles are held in a continuous metal line, they tend to support each other. This creates a very stiff, aggressive action.
If one is trying to remove rust from a metal plate, the high density of a wound spiral ensures that thousands of filament tips hit the surface every second. In contrast, a tufted cylinder brush has more “give.” Because the tufts are separated by the plastic of the core, each bundle of bristles can bend more freely. This makes the tufted version better for delicate tasks—like cleaning the skin of a peach—where the aggressive “wall of bristles” of a wound brush might cause damage.
The Importance of “The Pitch”
In the context of the wound cylinder brush, the word “pitch” refers to the distance between the spirals of the strip. It is a variable that is often overlooked.
Zero Pitch: This is a solid brush surface. It’s great for polishing.
High Pitch: This creates a spiral look. This is actually quite clever because it allows the brush to act as a “directional” tool. If the brush is spinning, the spiral can push water or dust toward one end of the machine, effectively self-cleaning the workspace as it operates.
It is worth noting that (and this is a common mistake) people often buy a brush that is too dense for their application. If you are cleaning a conveyor belt that has large chunks of debris, a dense wound cylinder brush will just get clogged. In that specific scenario, an open-wound pitch is far superior because it allows the debris to fall through the bristles rather than getting trapped in them.
Materials and Core Integrity
The core of a wound cylinder brush is almost always metal. Why? Because the force of winding a metal strip is quite high. A plastic core would simply collapse or warp under the tension. Most high-quality manufacturers use cold-rolled steel or stainless steel tubing.
For the filaments, the choices are vast:
Synthetic (Nylon/Poly): Best for wet environments and general cleaning.
Natural (Horsehair/Tampico): Used for anti-static applications or delicate polishing.
Wire (Steel/Brass): For heavy de-scaling and aggressive material removal.
Abrasive Nylon: The “grit-in-filament” choice for deburring.
A Subjective Take on Longevity
From an observational standpoint, the wound cylinder brush tends to outlast the tufted variety in “nasty” environments. If a brush is exposed to high heat or harsh chemicals, plastic cores (used in tufted brushes) tend to soften or crack. The metal-to-metal contact of a wound brush—where the metal strip is welded or clamped to a metal shaft—is simply more robust.
However, there is a trade-off. Wound brushes are generally heavier. This means the motors driving them need a bit more torque to get them started. It’s a small price to pay for a tool that doesn’t lose its “teeth” halfway through a shift.
Maintenance: The “Refill” Secret
One of the best-kept secrets in the industrial brush world is that you don’t always have to buy a new core. Because a wound cylinder brush is made of a strip wrapped around a shaft, many companies offer a “refilling” service. They strip off the old, worn-out spiral and wind a fresh one onto your existing steel shaft.
This is not only more economical but also better for the environment. Steel cores can last for decades, and throwing them away just because the bristles are worn is a waste of perfectly good industrial hardware. (Admittedly, the logistics of shipping a heavy shaft back and forth can sometimes be a headache, but for large-scale operations, it’s a standard practice).
Final Thoughts
Understanding what a wound cylinder brush is requires looking past the bristles and into the soul of the manufacturing process. It’s the difference between “stapling” and “engineering.” When high density, metal-core strength, and directional pitch are required, the wound spiral is almost always the superior choice. Whether it’s for a high-speed production line or a heavy-duty cleaning station, the way the brush is wrapped determines how well the job gets done.
