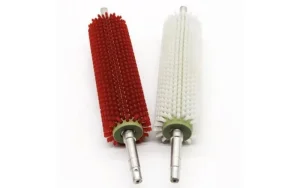

When one walks through a food processing facility or a high-end electronics assembly line, the machinery often features various types of rollers. Among them, the tufted cylinder brush stands out quite distinctly. To the casual observer, it looks remarkably like a giant, industrial version of a household toothbrush wrapped around a drum. It lacks the continuous, armored look of a wound cylinder brush, opting instead for a series of discrete “islands” of bristles.
This specific construction—often called “staple-set”—is actually a masterclass in versatility. While a cylinder brush can be made in many ways, the tufted method allows for a level of customization in the layout (the pattern of the holes) that other methods simply cannot replicate. It’s a tool that feels less like a blunt instrument and more like a precision instrument.
The Anatomy of the Tuft: The Invisible Anchor
At the heart of every tufted cylinder brush is a hole. It sounds simple, but the engineering is quite specific. A solid core—usually a high-density plastic like HDPE or Polypropylene—is drilled with precision. Then, a bundle of filaments is folded in half and driven into that hole.
What holds it there? A tiny, high-tensile metal staple. This staple (usually made of stainless steel or brass) wedges itself into the walls of the core material. It’s an interference fit. If the core is too soft, the tufts fly out. If the core is too hard, it cracks during the tufting process. There is a “sweet spot” in material science here that one only appreciates after seeing these brushes run at 1,000 RPM for weeks on end.
Why the Pattern is the Real Secret
One might notice, upon closer inspection, that the tufts aren’t always in straight lines. This is where the tufted cylinder brush really shines compared to a wound cylinder brush. Because each hole is drilled independently, the manufacturer can create “Chevron” patterns, “Spiral” patterns, or “Staggered” rows.
Why does this matter? Well, if you have a brush with straight rows, it might leave “streaks” on the product because the gaps between the rows never touch the surface. By staggering the tufts, the brush ensures that every square millimeter of the workpiece is hit by a bristle tip. It’s a subtle detail, but in the world of fruit washing or glass cleaning, it’s the difference between a clean product and a rejected batch.
Comparative Analysis: Making the Choice
For those trying to decide which construction style fits their specific machine, it helps to look at them side-by-side. The following table highlights the core differences that an operator will experience on the factory floor.
| Feature | Wound Cylinder Brush | Tufted Cylinder Brush |
|---|---|---|
| Bristle Density | Very High (Continuous) | Moderate (Segmented by holes) |
| Core Material | Usually Steel or Stainless Steel | Usually HDPE, Polypro, or Wood |
| Durability | High (Metal-locked bristles) | Moderate (Staple-dependent) |
| Replaceability | Strip can often be replaced on core | Entire brush is usually discarded |
| Debris Clearance | Excellent (with open pitch) | Moderate (depends on hole pattern) |
| Common Use | Heavy scrubbing, conveyor cleaning | Light washing, fruit sorting |
Observations on “Breathability” and Airflow
In certain applications, particularly in the woodworking or textile industries, a brush that is too dense is actually a problem. This is a common realization among technicians. A wound cylinder brush can sometimes be so dense that it acts like a solid wall, trapping heat or preventing air from circulating.
The tufted cylinder brush, however, has “breathability.” Because there is space between the tufts, air can move through the brush. This helps keep the filaments cool and prevents the build-up of static electricity (especially when using synthetic filaments like Nylon). Furthermore, in wet applications, these gaps allow water to flow through the brush, carrying away dirt and debris rather than letting it get mashed into the bristles.
The Role of the Core: Plastic vs. Everything Else
Most cylinder brush designs that use the tufting method rely on plastic cores. It’s worth noting that (and this is quite important for food-grade environments) plastic cores don’t rust. They don’t absorb moisture. If you are washing apples or cleaning solar panels, you don’t want a heavy steel core that might corrode or leak grease.
Common Core Materials for Tufted Brushes:
HDPE (High-Density Polyethylene): The standard choice. Tough, cheap, and moisture-resistant.
Polypropylene: Better for slightly higher temperature environments.
UHMW: Extremely wear-resistant, used in the most demanding high-speed lines.
Wood: Occasionally seen in specialized “old-school” polishing, but increasingly rare due to splintering risks.
The Limitations: Where Tufted Brushes Struggle
It would be dishonest to suggest that the tufted cylinder brush is perfect for every task. Observationally, these brushes are not the best choice for heavy-duty de-scaling or rust removal. Why? Because the plastic core is the “weak link.”
If you apply massive amounts of pressure to a tufted brush, the plastic can flex. If the brush gets too hot, the plastic can soften, and the metal staples might lose their grip, leading to “bristle loss.” In these extreme industrial scenarios, the metal-backed wound cylinder brush is almost always the superior choice. One must match the “aggression” of the task to the “robustness” of the core.
Subjective Performance: The “Flick” Factor
There is something satisfying about the way a tufted brush operates. Because the bristles are gathered into bundles, they have a collective “flick.” Each tuft acts like a small spring. When it hits a surface, the whole bundle bends and then snaps back. This “flicking action” is incredibly effective at knocking dust out of crevices. It’s a more “percussive” type of cleaning than the “scrubbing” action of a continuous spiral brush.
Maintenance and “Loading”
One issue that often arises with a cylinder brush used in sticky environments (like label application or glue-related processes) is “loading.” This is when debris gets stuck in the gaps between the tufts. Because the tufted cylinder brush has so many “nooks and crannies” at the base of the bristles, it can be harder to clean than a flat-surface brush.
Experienced operators suggest using a high-pressure air blast or a “comb” to clear out the base of the tufts. If the debris is allowed to harden around the staple, it can eventually lead to the filaments becoming brittle and breaking off at the base.
Final Thoughts
The tufted cylinder brush is perhaps the most adaptable tool in the industrial brush family. Its ability to host different patterns, its lightweight plastic core, and its “spring-like” cleaning action make it indispensable for everything from pharmaceutical cleaning to automated car washes. While it may not have the brute strength of a wound metal brush, its finesse and precision are what make it a staple (pun intended) of modern manufacturing.
